Sétra Check — AxisVM plugin for footbridge dynamic analysis
AxisVM X8 plugin for footbridge dynamic analysis per Sétra guidelines. Modal analysis, pedestrian load cases, comfort assessment and PDF report, directly inside AxisVM.
Why Sétra Check?
Pedestrian-induced vibration analysis for footbridges, fully integrated into your AxisVM workflow.
Sétra-Compliant Analysis
Full implementation of the Sétra guidelines for footbridge dynamic analysis. Footbridge class, modal frequencies and comfort thresholds, all handled per the standard.
Native AxisVM Integration
Runs inside AxisVM X8. Select your walking surface domains and walking path directly in the model, the plugin drives the vibration analysis for you.
Flexible Load Configuration
Fully or partially loaded domains, configurable damping, footbridge class and number of mode shapes. Cover the realistic loading scenarios for your project.
Interactive 3D Viewer

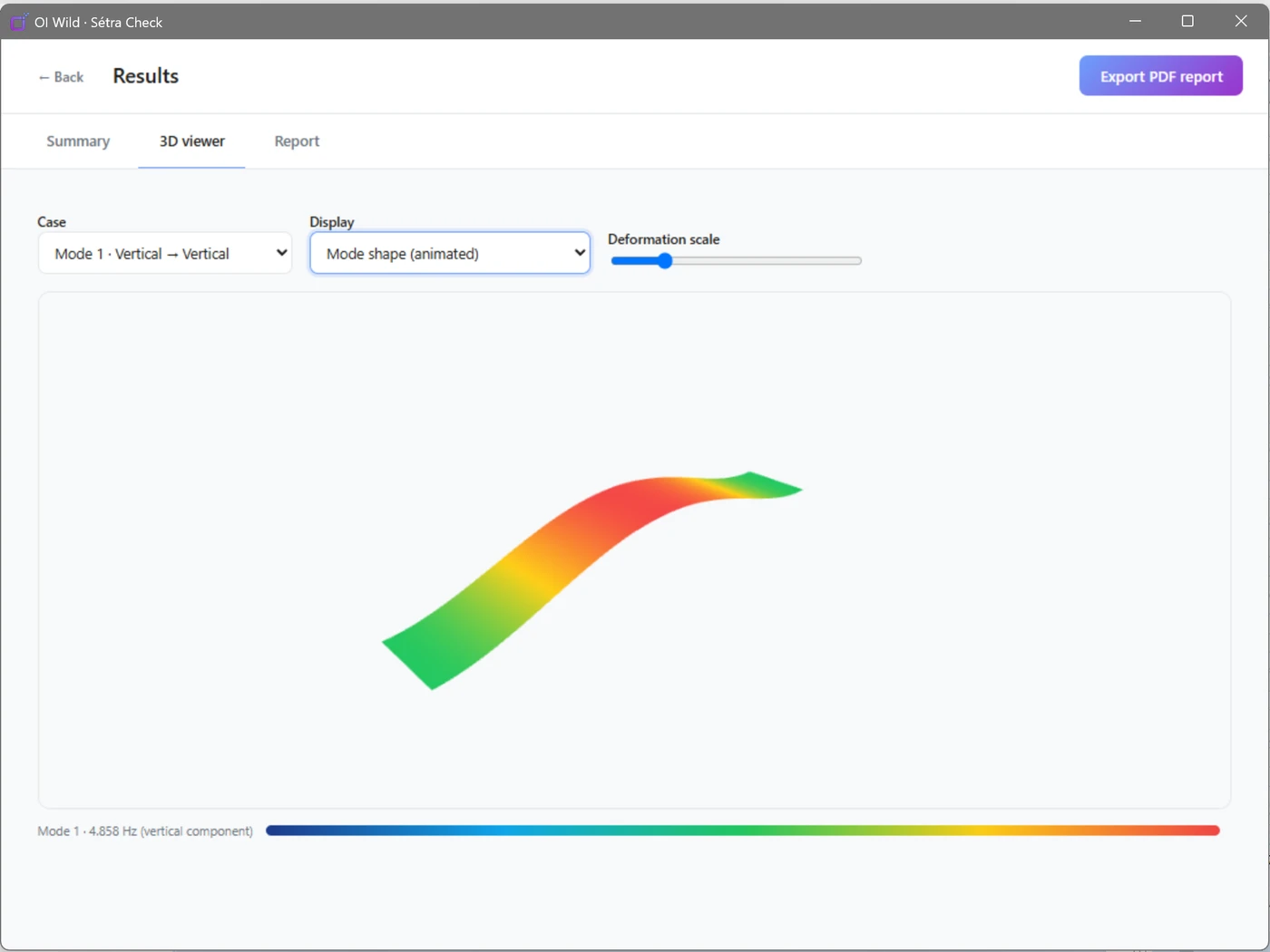

Browse modal shapes, accelerations in the perception direction and the deformed structure in a built-in 3D viewer with per-case animation.
Submission-Ready PDF Report

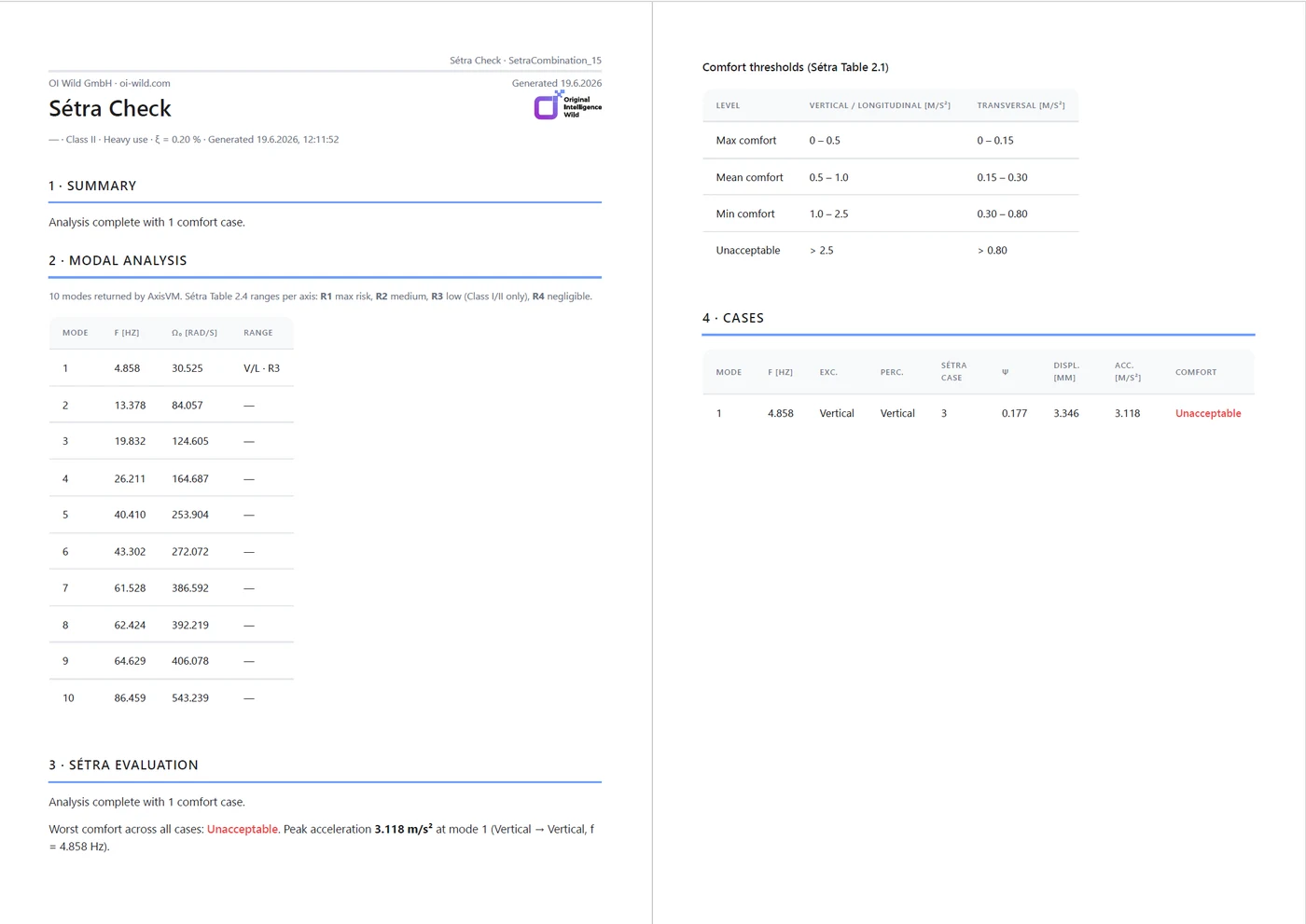

Compact or complete PDF report with modal frequencies, Sétra cases, comfort levels and the full set of static load cases used for each verification.
Modern UI in AxisVM
A clean, modern interface inside AxisVM, with the look and feel of a modern web app, without leaving your FEM environment.
EN / DE Interface
The plugin UI is available in English and German, so your whole team can use it in their preferred language.
Swiss Support
Direct support from a Swiss civil engineer. Help with complex projects included.
How Sétra Check works
From AxisVM model to a comfort verification, in a few steps.
Set parameters & walking surface

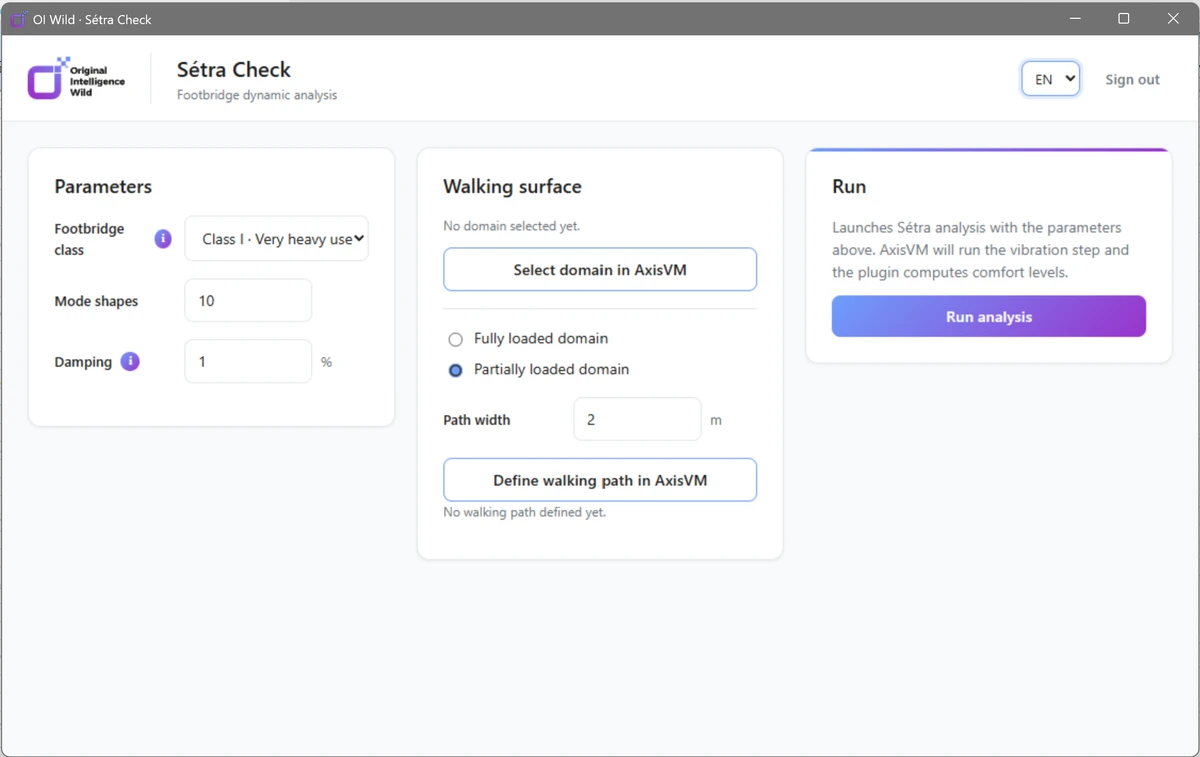

Choose footbridge class, number of mode shapes and damping, then pick the walking surface and (optionally) the walking path directly inside AxisVM.
Run analysis & review summary

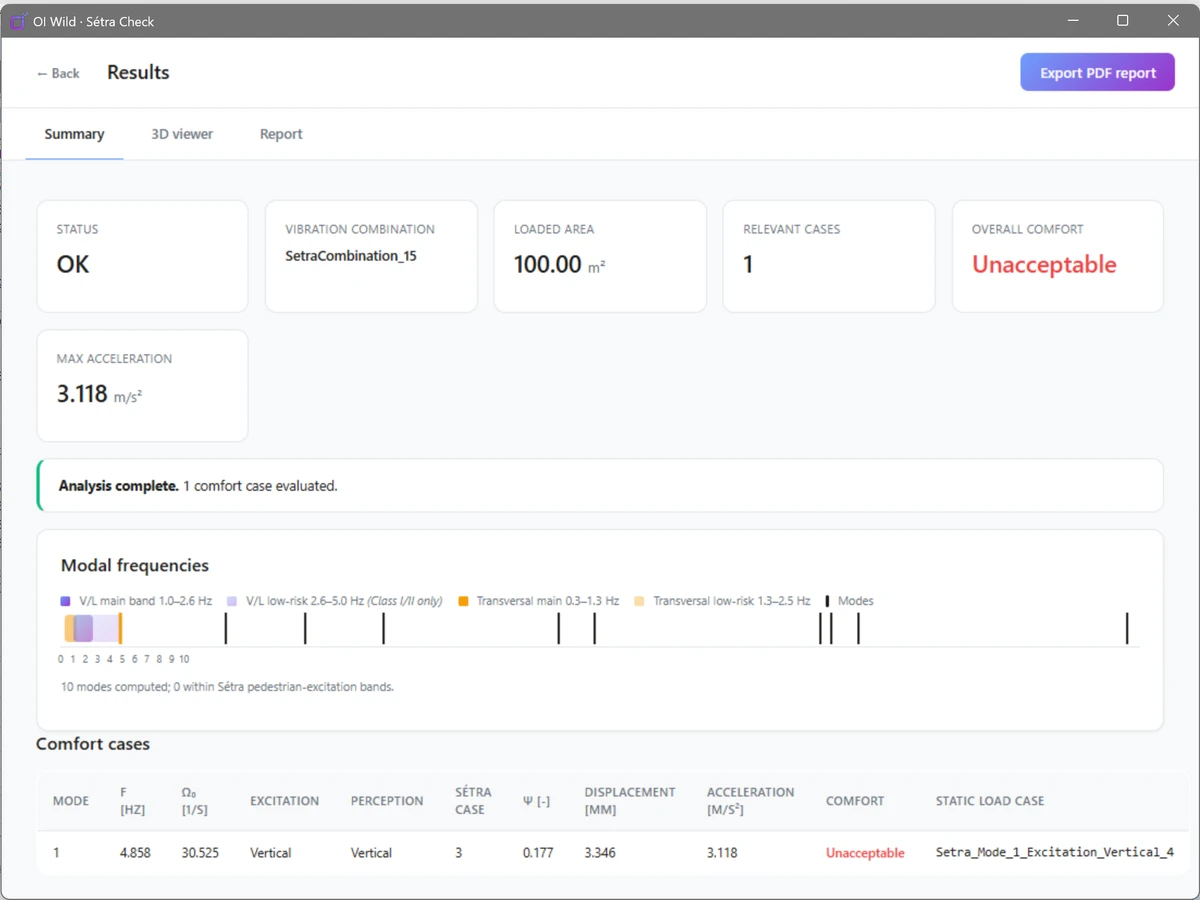

AxisVM runs the modal step, the plugin computes Sétra load cases and you get an at-a-glance summary with overall comfort, peak acceleration, modal frequencies and comfort cases.
Inspect 3D viewer
Explore each case in the built-in 3D viewer, switch between animated mode shape, acceleration in the perception direction and mesh, and adjust the deformation scale.
Export PDF report
Export a compact or complete PDF report with summary, modal analysis, Sétra evaluation, comfort thresholds and all cases, ready for your project documentation.
System Requirements
Sétra Check is a native AxisVM plugin. You need a working AxisVM installation to use it.
AxisVM X8
Tested with AxisVM X8 on Windows 10 and 11. The plugin is installed under the AxisVM Plugins folder.
Windows 10 / 11 (x64)
64-bit Windows. The installer takes care of all the required dependencies.
Online license check
An internet connection is required to validate your license. Calculations themselves run locally on your machine through AxisVM.
Pricing
A subscription, not a one-off license: updates and support are always included, with no separate maintenance fees like traditional Windows-based software.
All prices excl. VAT. Updates, bug fixes and direct support are included in the subscription, no extra maintenance fees.
Request a license
Sétra Check is available now. Fill out the form and I'll set up your license so you can run footbridge dynamic analyses directly inside AxisVM.
- check_circle 7-day trial license to evaluate the plugin
- check_circle Full access to all features
- check_circle Direct support from the developer
Thank you!
We have received your request and will get back to you shortly by email.
Developed by Liene Wild
Sétra Check was developed by Liene Wild, MSc Civil Engineer HSLU/FHZ with over 10 years of experience in software development for civil engineers, with development contributions from Dr. Gábor Lengyel.
It is the first AxisVM app released under OI Wild, opening a new line of plugins for civil engineers.
Qualifications
MSc HSLU/FHZ Bauing - Construction Engineering
10+ Years - Software Development Experience
15+ Plugins - Developed for AxisVM
Frequently Asked Questions
Which AxisVM versions are supported?
Sétra Check is built and tested for AxisVM X8. Support for additional versions can be discussed if you have a specific need.
Which standard does the plugin implement?
The plugin implements the French Sétra guidelines for footbridge dynamic analysis, with class-based load cases and comfort thresholds.
Where do the calculations run?
All modal and dynamic calculations run locally in AxisVM on your machine. Only the license check talks to the OI Wild server.
Can I try Sétra Check before buying?
Yes. Through the form you can request a 7-day trial license to evaluate the plugin on your own models before committing to a yearly license.
How is the plugin installed?
You receive a Windows installer that copies the plugin and its dependencies into the AxisVM Plugins folder. After restarting AxisVM, Sétra Check is available from the plugins toolbar.
Are updates included?
Yes. Your subscription includes updates, bug fixes and direct support for as long as it is active.
Ready for footbridge dynamic analysis inside AxisVM?
Request your license and start running Sétra-compliant comfort checks today.
